EC-80T

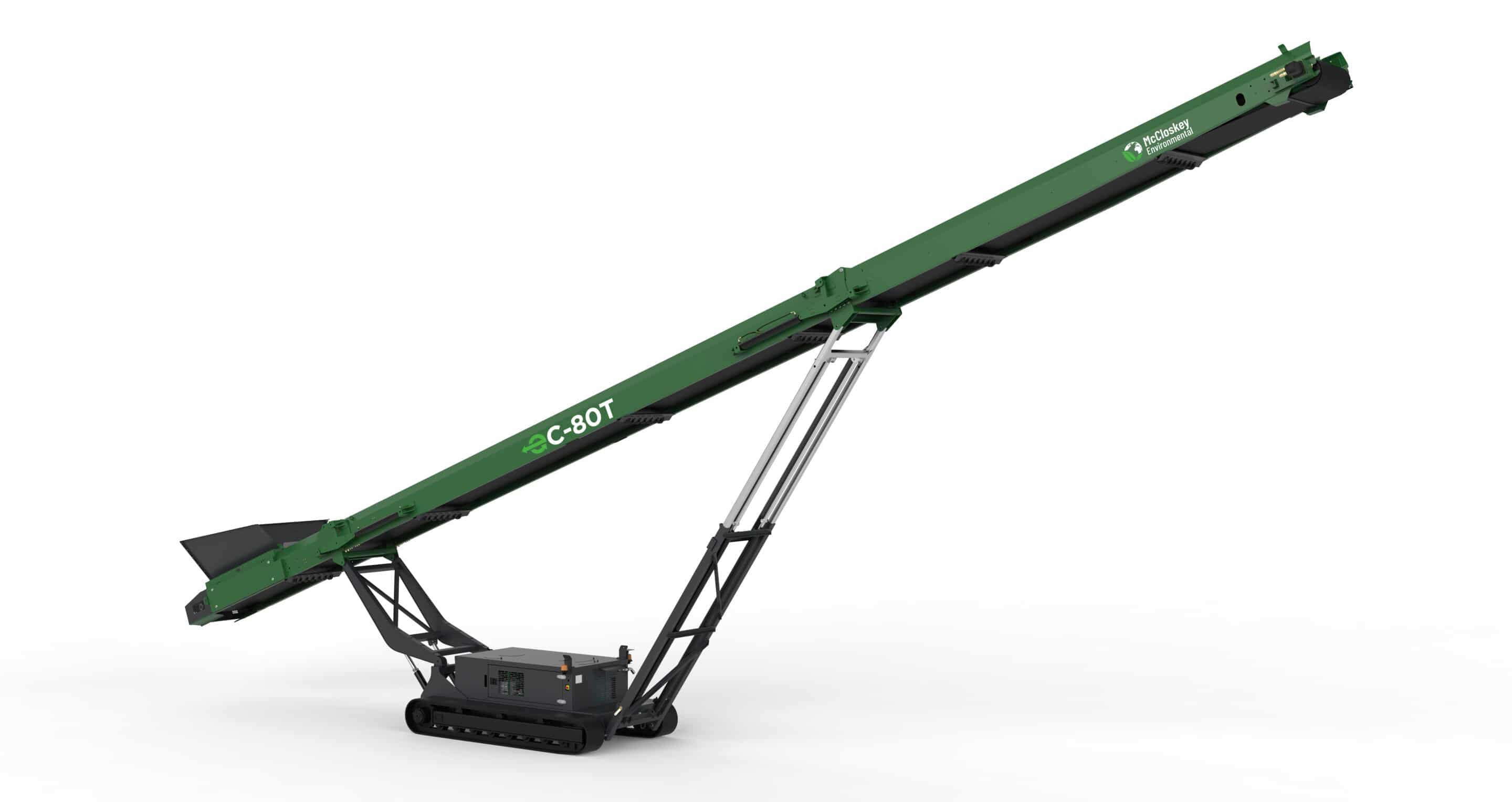

EC-80T High Capacity Stockpiling
The EC-80T is designed to allow operators to stockpile/transfer material directly from shredding and recycling plants it offers the perfect solution to all your material handling needs. It offers the flexibility and mobility needed to ensure that the stockpiling process is as fast and efficient as possible, it eliminates the use of a loader and also the double handling of materials.
The unit can also be containerized for transport, with minimal setup time, substantially reducing transport costs
Key Features
Hydraulic folding heading section for transport minimizing setup time
Hydraulically adjustable discharge height up to 11m
4 Meter tracks for superior manoeuvrability and stability
Fuel efficient Hydraulics system
Hydraulically adjustable feed in height to compliment shredding and recycling plants
CAT 2.2 50KW (67HP) giving a rating of up to 500 TPH
User Friendly Hydraulic Controls
Feed boot HARDOX liners
Heavy Duty Impact Bed
Specifications
- ENGINE – CAT 2.2 50KW (67HP) Stage V / Tier 4 Final
- TRANSPORT HEIGHT – 3.56M (11’ 8”)
- TRANSPORT LENGTH – 16.3M (53’ 7”)
- TRANSPORT WIDTH – 3.35M (11’ )
- STOCKPILE HEIGHT – 9.3M (30’ 5”)
- STOCKPILE CAPACITY- 1300M³ | 1700 YDS³
- WORKING MAX LENGTH – 23.5M (77′ 3″)
- WORKING MAX HEIGHT – 10.8M (37′ 6″)
- BELT – 40” (1000MM) HEAVY DUTY – 3 PLY
- WEIGHT – 12,700KG | 27,998 LB
- PRODUCTION – 500 TPH (550 USTPH)
