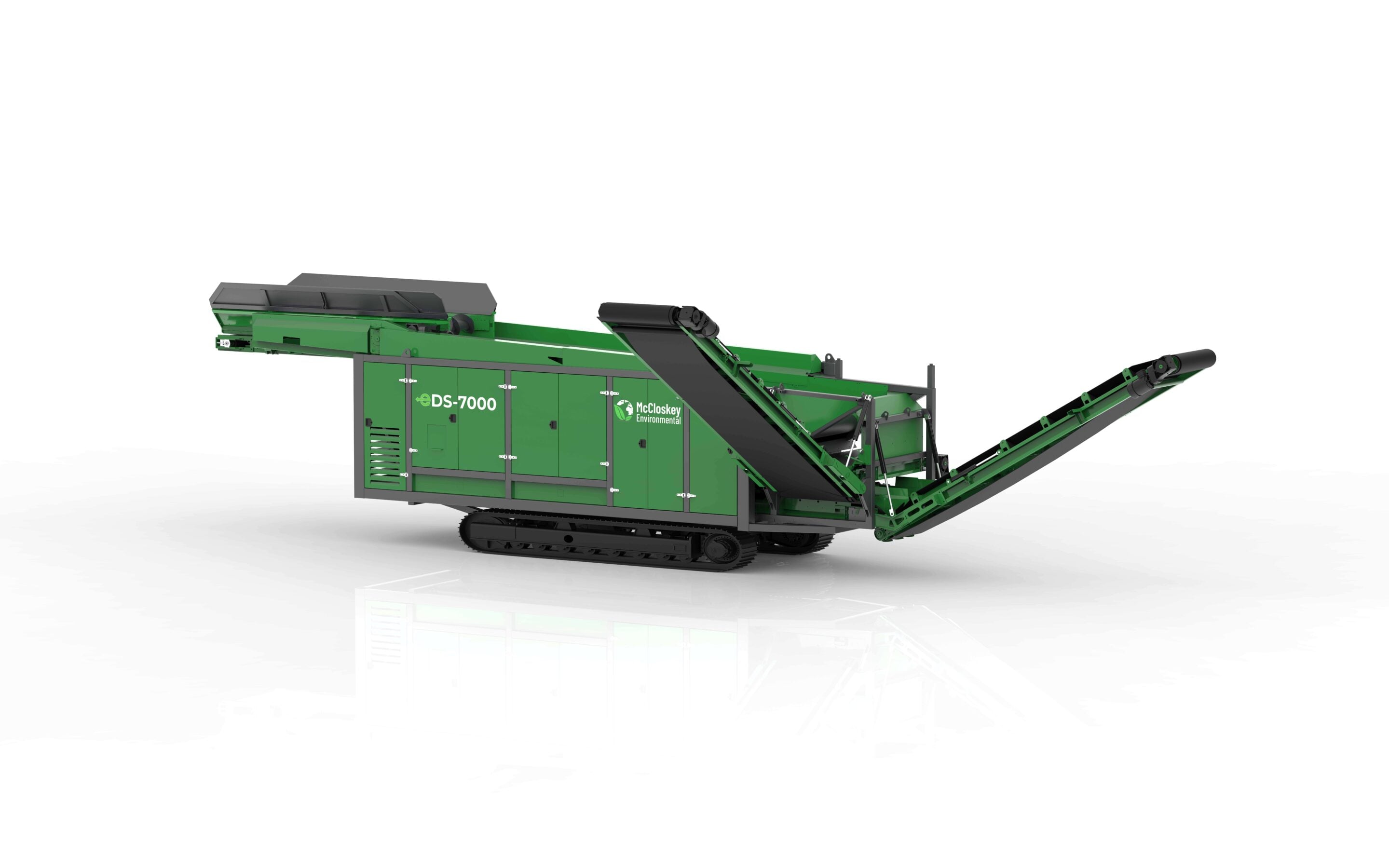

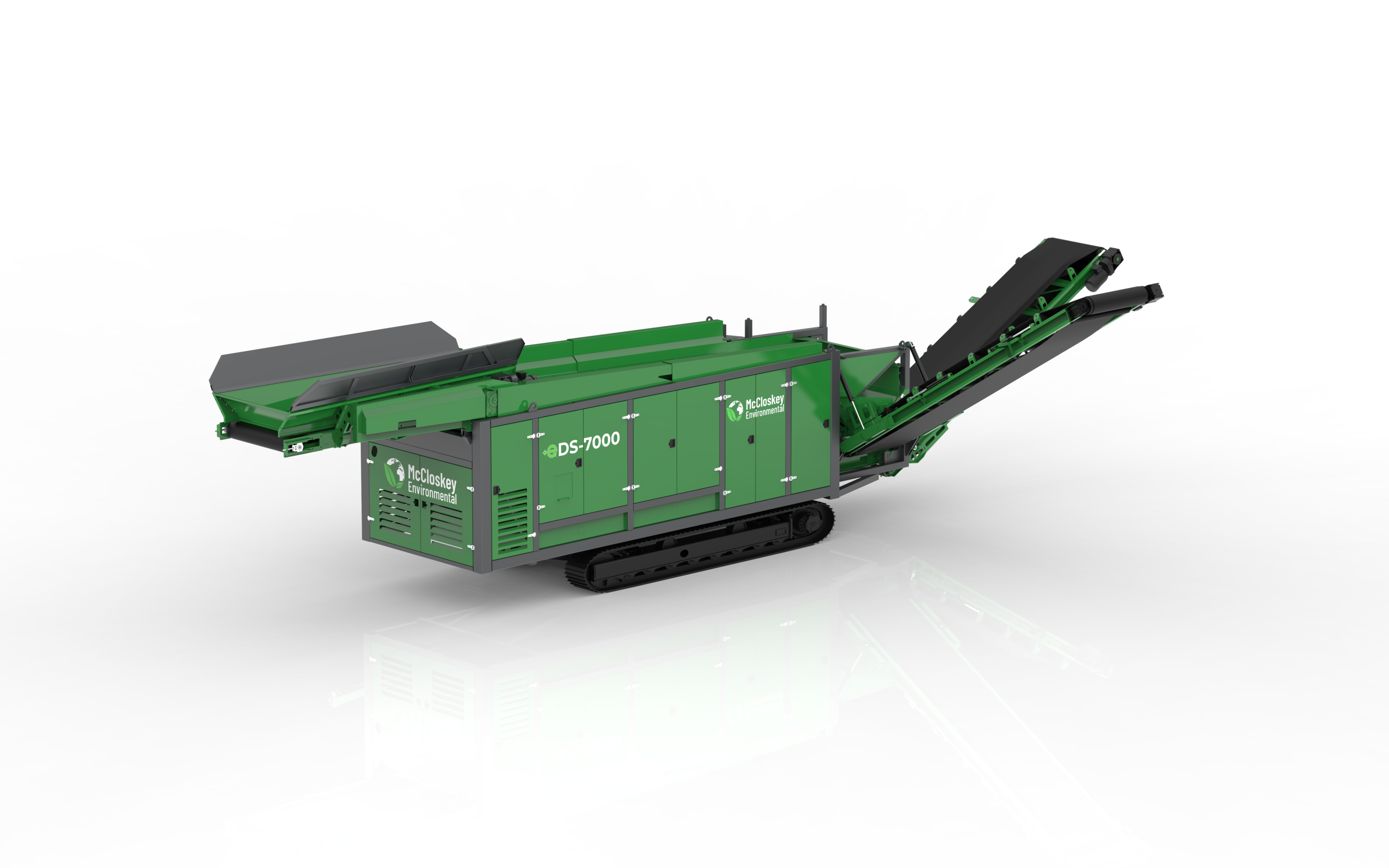

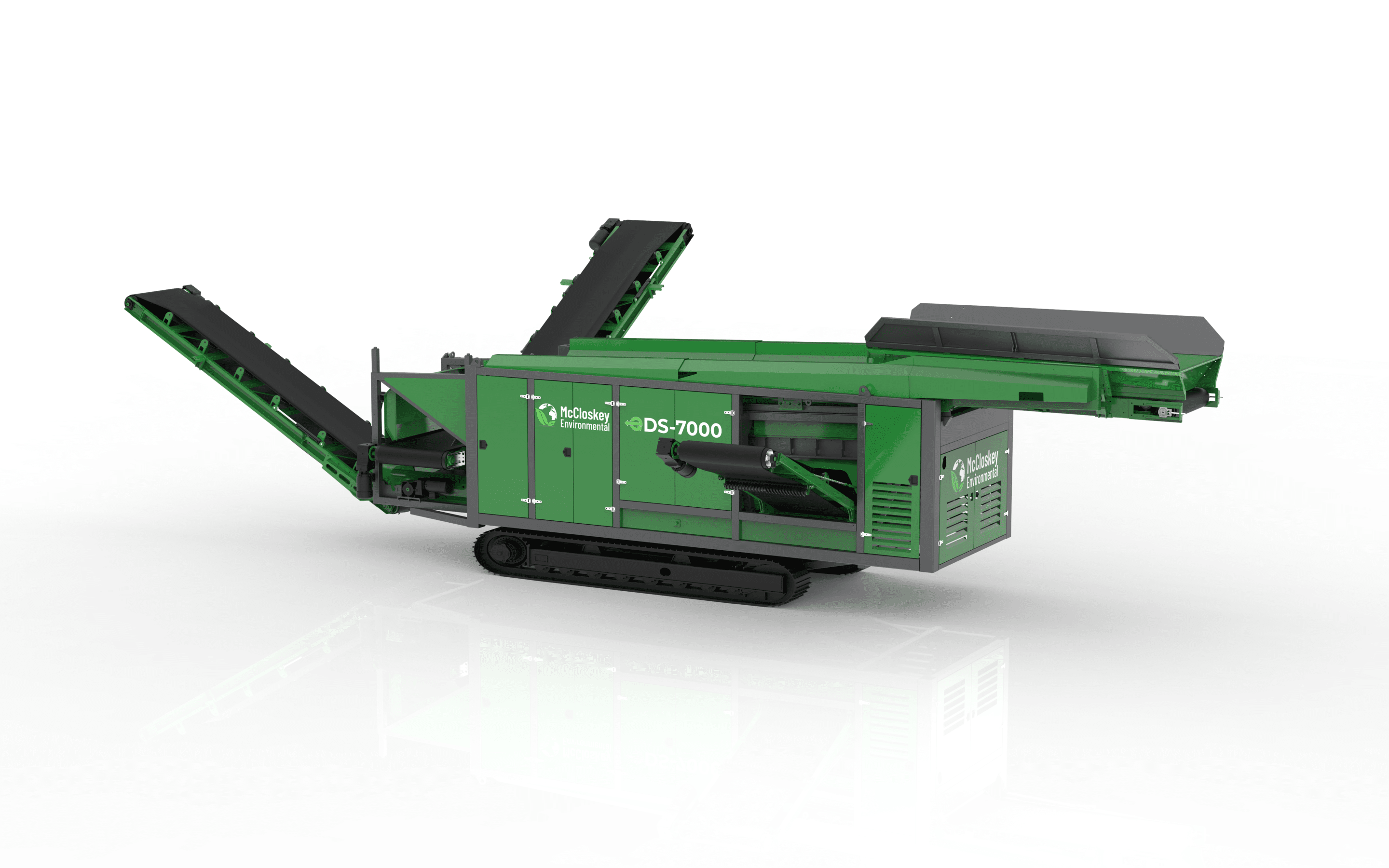

The EDS-7000 is a tracked disc screener capable of effectively and reliably screening various types of
material. The EDS-7000 is designed to meet the needs of customers who have a requirement to size the
shredded materials or remove fines to give a clean product.

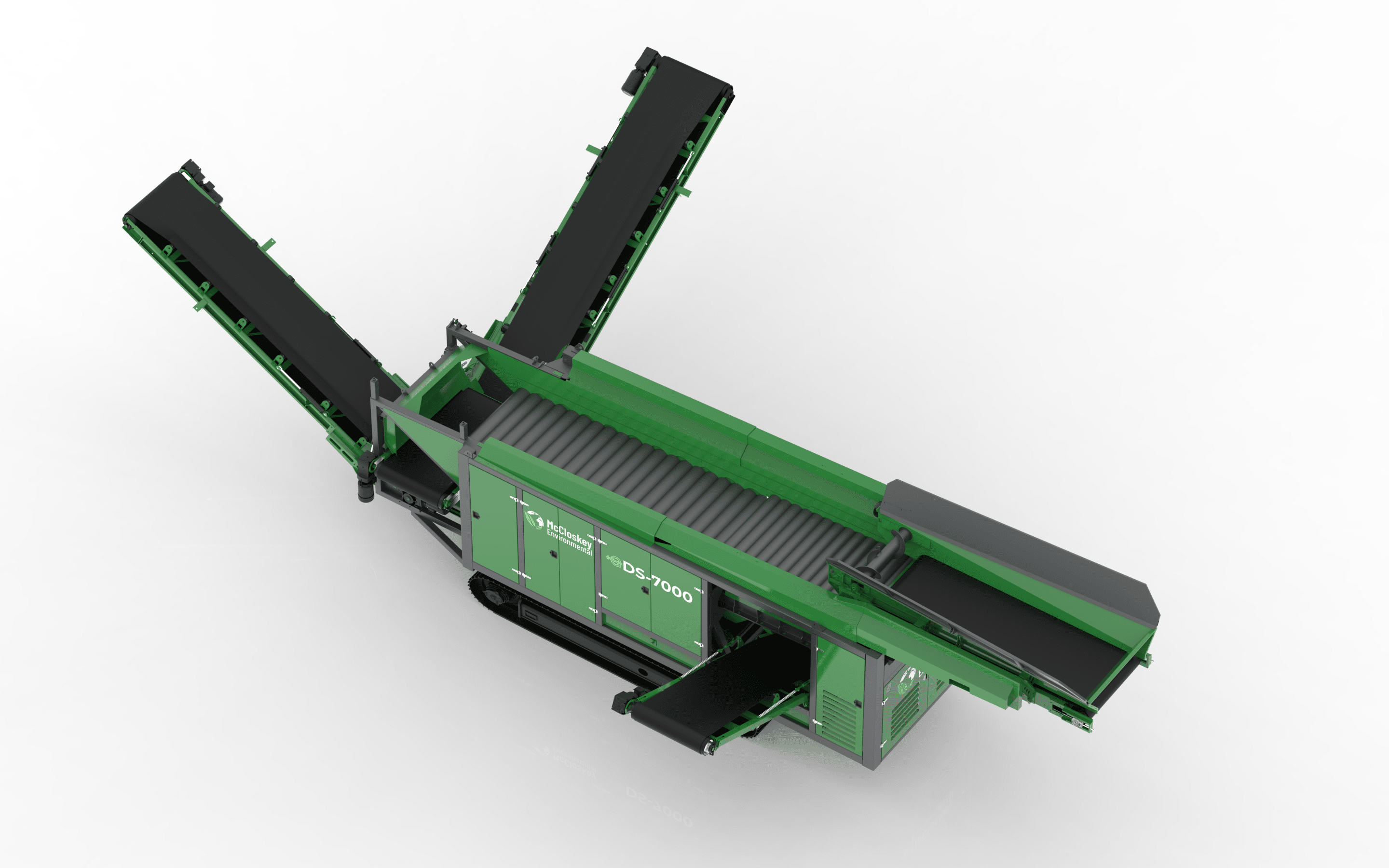

The patented disc screen technology sees a series of hexagonal or octagonal disc shafts with a flat
profile. Thanks to this particular shape, the material slides on the screen discs and is subject to an up and
down motion that separates the waste.

The addition of the smart hopper allows the machine to be changed from a 3 fraction to 2 fraction
machine, and the EDS-7000 comes with the following features as standard

Key Features

7M total screen length - F1 2.5M / 4.5M

Full on board Diesel eclectic generator - Can also be powered by mains

Variable speed controls on screen deck and conveyors

KOHLER 55KW T4F/EU Stage V engines

4M tracks for superior maneuverability and stability

2F/3F product production

User friendly controls

Disc Screening Technology

  • Transport Height – 3.10M (10’-2”)
  • Transport Length – 8.74M (28’-7”)
  • Transport Width – 2.55M (8’-4”)
  • Weight – 23,000KG (50,700 LBS)
  • Working Height – 4.25M (13’-9”)
  • Working Length – 15.5M (50’-8”)
  • Average Fuel Consumption – 10 L/HOUR (2.6 US GAL)
  • Max Production rate – 200TPH (MATERIAL DEPENDENT)
