Shredders Range

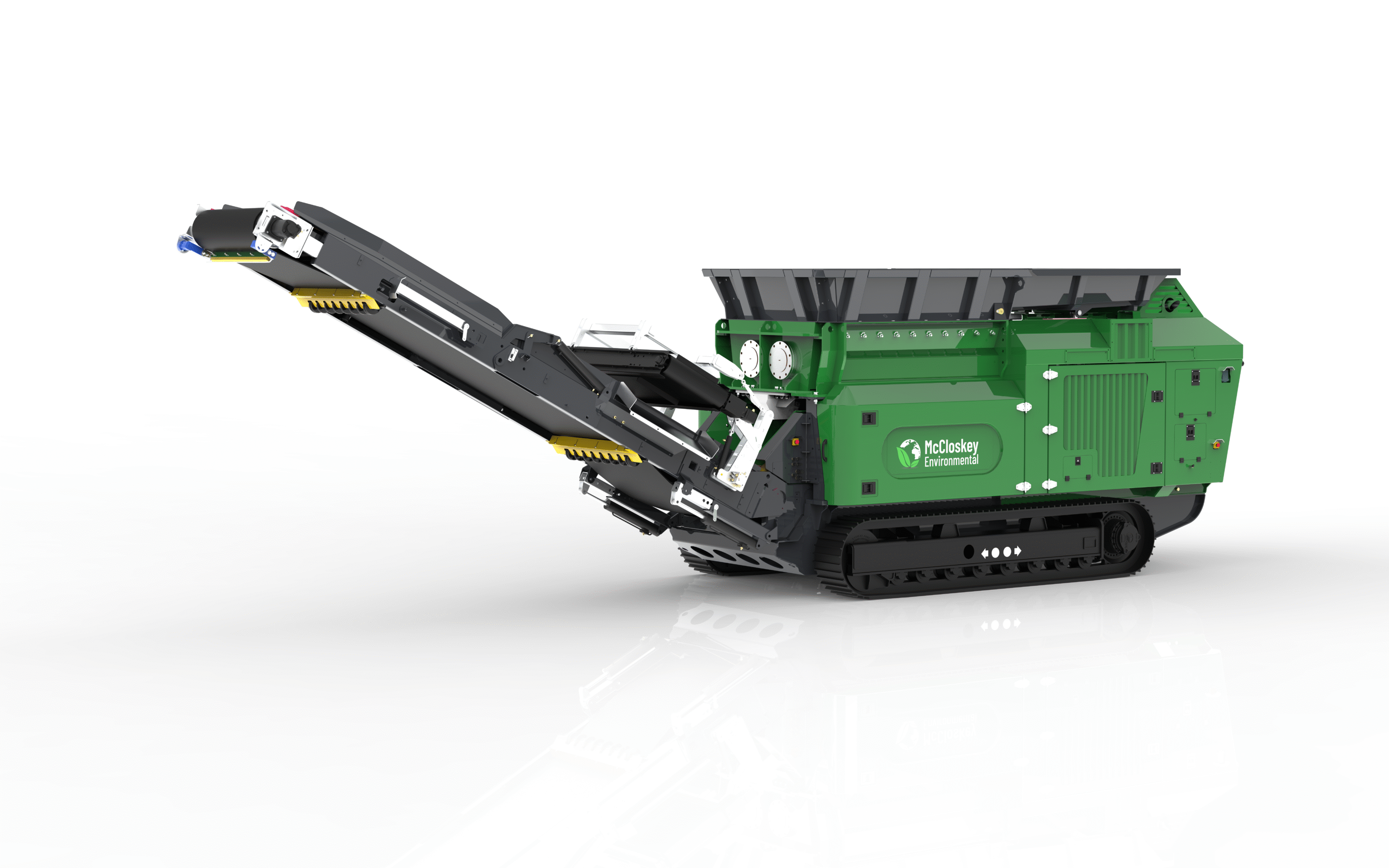

ES-200 – Design Stage
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.
Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
Key Features
Aggressive 8 Knife Samurai, heavy duty cutting table
Danfoss Electrical control unit
Variable speed main conveyor
4 Meter tracks for superior maneuverability and stability
CAT C15 403 KW (540HP) Stage V/Tier 4 Final
Fuel efficient Hydraulics system
User Friendly Hydraulic Controls
Double Hydrostatic drive transmission
Specifications
- LENGTH – WORKING (MAX) – 15.1M (49’-7”)
- HEIGHT – WORKING (MAX) – 3.5M (11’-6”)
- LENGTH – TRANSPORT 9.54M – (31’-4”)
- WIDTH – TRANSPORT 3.01M – (9’-11”)
- HEIGHT – TRANSPORT 3.50M – (11’-6”)
- MAXIMUM PRODUCTION RATE – 100TPH
(MATERIAL DEPENDENT) - AVERAGE FUEL CONSUMPTION 60 L/HOUR – (15.5 US GAL)
- MACHINE WEIGHT 35,000KG – (77,160 LBS.)
- NUMBER OF SHAFTS – 2
- ROTATING SPEED – 16-41/27-56 RPM
- NUMBER OF KNIVES – 8/10
- NUMBER OF COUNTER KNIVES – 16/20
- CUTTING AREA – 2420MM X 2000MM (95” X 79”)
- KNIFE TYPE – SAMURAI
- CHAMBER WEIGHT – 14,900KG (32,850 LBS.)
- HOUSEHOLD WASTE – UP TO 100 TON
- DEMOLITION WOOD – UP TO 70 TON
- INDUSTRIAL WASTE – UP TO 35 TON
- BULK WASTE UP TO – 50 TON
