ES-250

ES-250

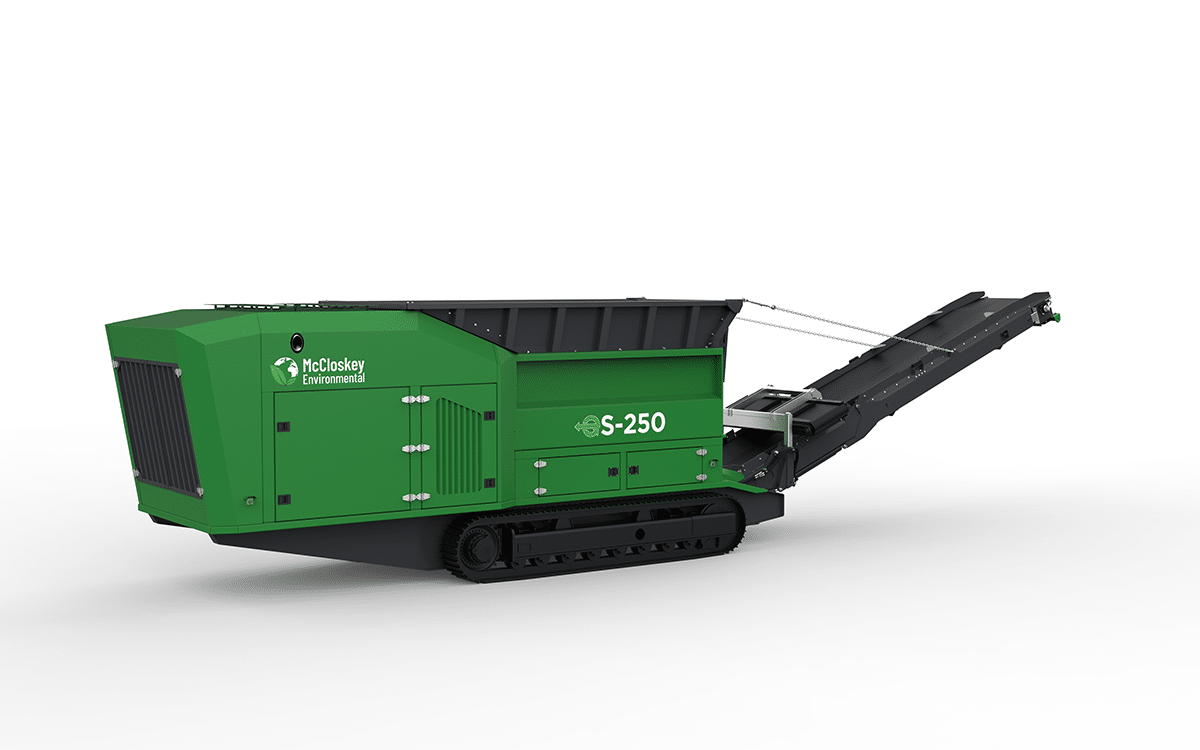

The ES-250 is a tracked primary shredder capable of effectively and reliably shredding virtually any type of material. Designed to meet the needs of plants in which the incoming materials vary greatly in terms of size, composition, and difficulty to shred.

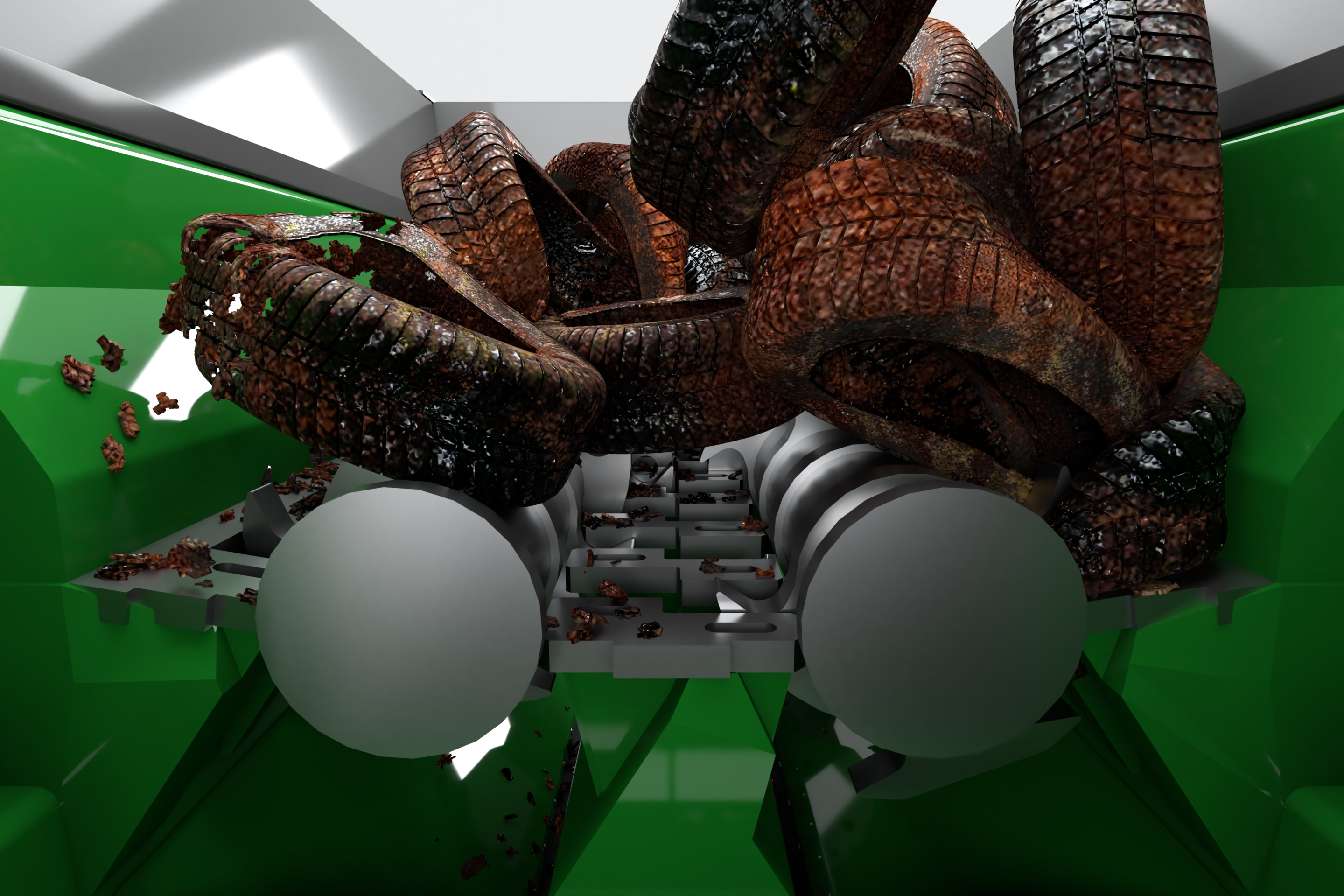

The interaction between the rotating knives on the dual shafts running asynchronously in both directions ensures the input material is constantly moving to prevent bridging and maximizing shredding efficiency

Key Features

Aggressive 8 Knife, heavy duty cutting table

Danfoss electrical control unit

Variable speed main conveyor

4 Meter tracks for superior maneuverability and stability

Volvo C15 403 KW (540HP) Stage V/Tier 4 Final

Fuel efficient hydraulics system

User friendly hydraulic controls

Double hydrostatic drive transmission

Specifications

  • Length – Working (MAX) – 15.1M (49’-7”)
  • Height – Working (MAX) – 3.5M (11’-6”)
  • Length – Transport – 9.54M (31’-4”)
  • Width – Transport – 3.01M (9’-11”)
  • Height – Transport – 3.50M (11’-6”)
  • Maximum Production Rate – 100TPH (110 USTPH) (Material Dependent)
  • Average Fuel Consumption – 60 L/HOUR (15.5 US GAL)
  • Machine Weight – 35,000KG (77,160 LBS.)
  • NUMBER OF SHAFTS – 2
  • ROTATING SPEED – 16-41/27-56 RPM
  • NUMBER OF KNIVES – 8/10
  • NUMBER OF COUNTER KNIVES – 16/20
  • CUTTING AREA – 1690MM X 2480MM (95” X 79”)
  • KNIFE TYPE – SHEER TABLE
  • CHAMBER WEIGHT – 14,900KG (32,850 LBS.)
  • HOUSEHOLD WASTE – UP TO 100 TON
  • DEMOLITION WOOD – UP TO 70 TON
  • INDUSTRIAL WASTE – UP TO 35 TON
  • BULK WASTE – UP TO 50 TON
