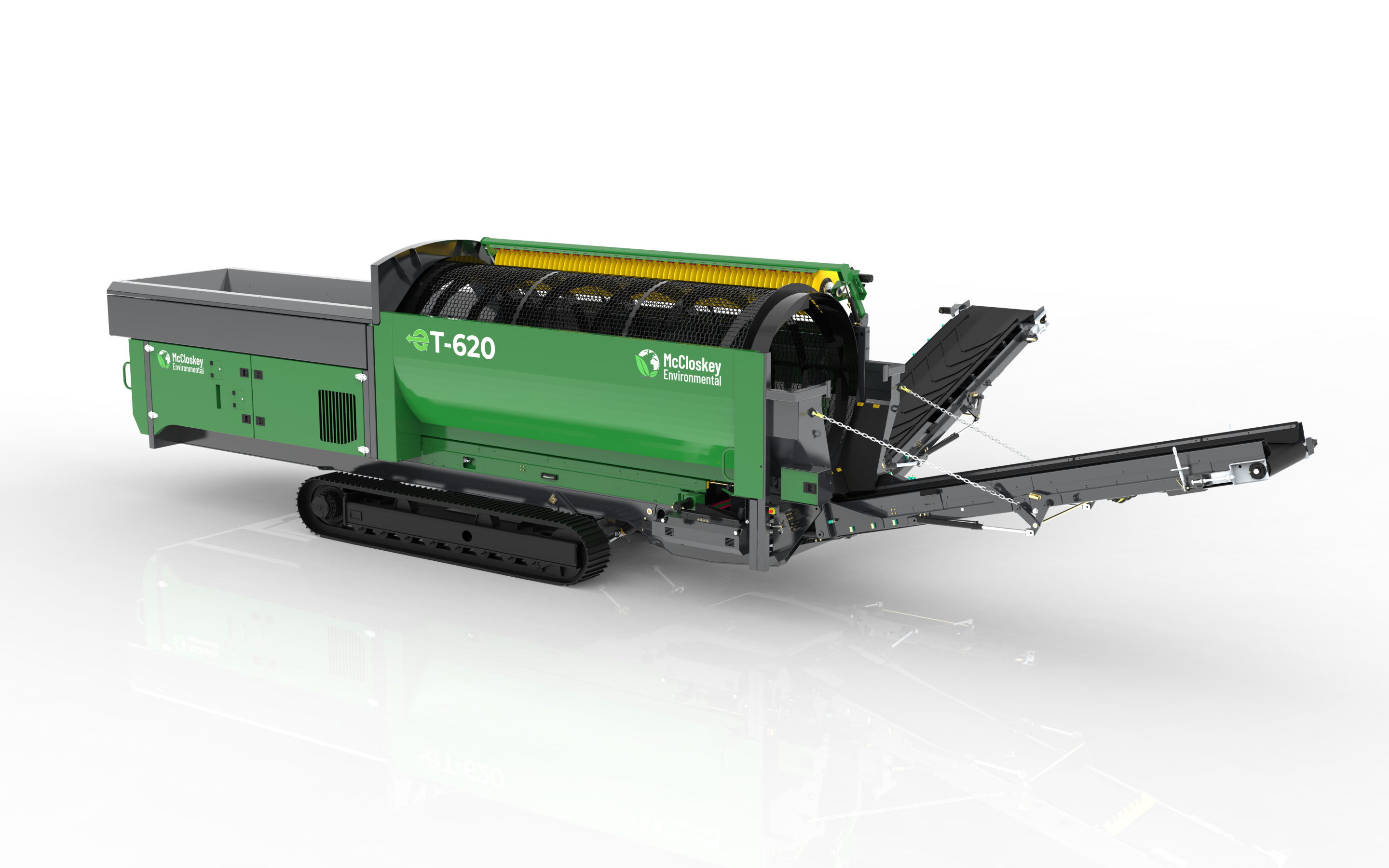

ET-620
ET-620
The ET-620 is a tracked trommel designed specifically to meet the needs of the European and ROW
market. The ET-620 has been designed to meet the needs of plants dealing in wood waste, compost, Light
C&D waste and general MSW.
The interchangeable drum is removable from the side of the machine via a side opening door and
retractable feed conveyor. The quick change drum system allows a machine to be quickly changed to a
different feed material rapidly, eliminating the need for multiple machines for multiple waste streams on
site. The machine will also fit readily available standard 620 drums, also used on Doppstadt, Terex and
EDGE trommels, amongst other. There is an intelligent control system designed to optimize throughput
without causing stalling or slowing of the drum screen.
Key Features
Hydraulically adjustable drum brushes
Intelligent electrical control unit
Variable speed feed conveyor
4M tracks for superior maneuverability & stability
Hydraulically adjustable track frame for increasing ground clearance
DEUTZ 3.6 100kw (136HP) Stage V/Tier 4 Final
Fuel efficient Hydraulics system.
User Friendly Hydraulic Controls
Hydrostatic drive transmission
Adjustable transfer conveyor divert chute
Chain drive drum
Hydraulically adjustable conveyor angle
- Engine - 130kW (174HP)
- Transport Length - 21.19m (69’ 6”)
- Transport Width - 3.30m (10’ 10”)
- Transport Height - 4.12m (13’ 6”)
- Weight - 36,630kg (80,750 lbs)
- Working Height - 5.22m (17’ 1.5”)
- Working Length - 31.33m (103’ 9”)
- Hopper Capacity - 6.9m³ (9yd³)
- Radial Conveyor Stockpile Height - 5.09m (16’ 8”)
