EC-100T
EC-100T

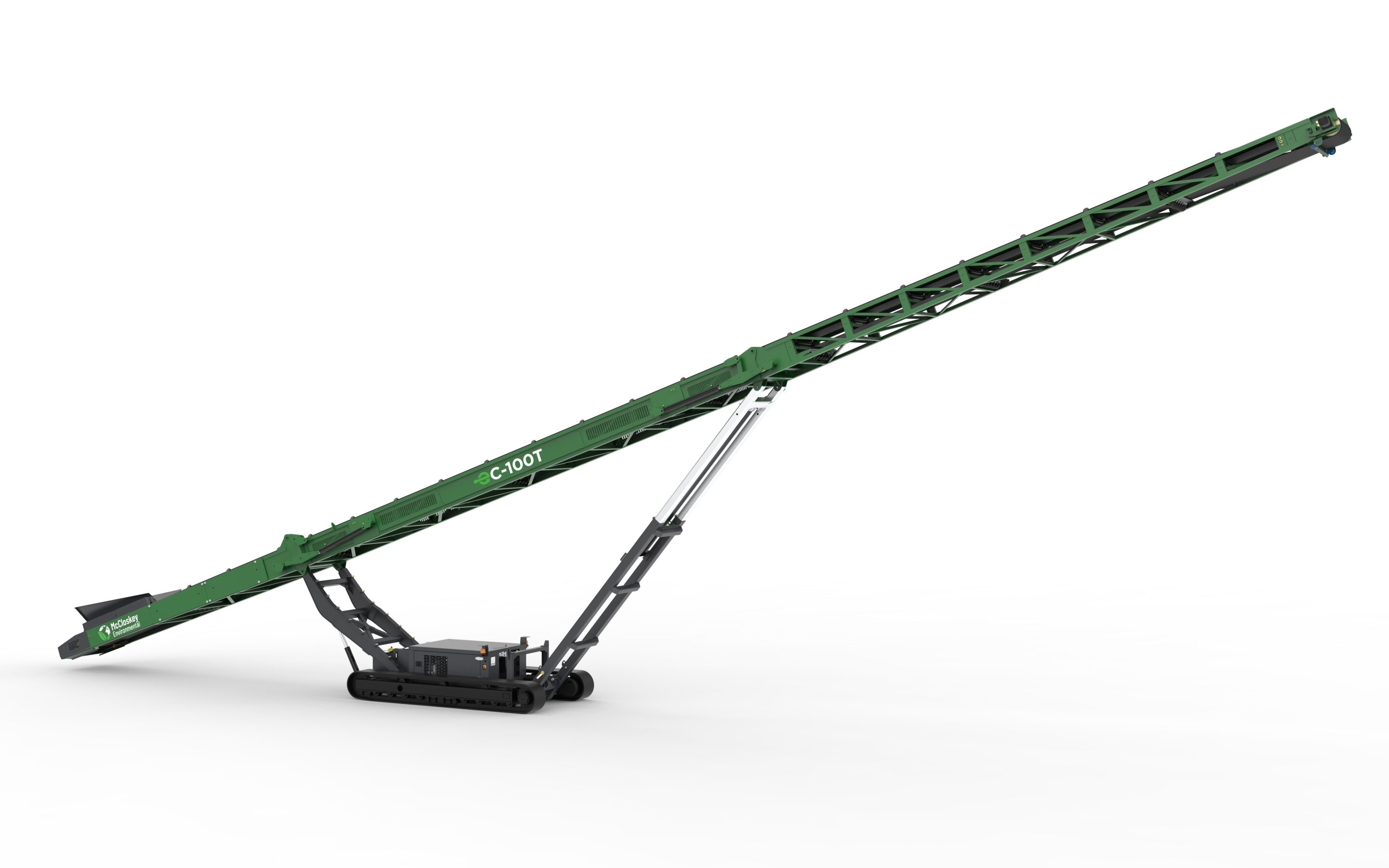

The EC-100T tracked stacker reaches new heights increasing the capacity of production operations, and delivering 800TPH of stocked material. Offering the flexibility and mobility needed to ensure that the stockpiling process is as fast and efficient as possible, it eliminates the use of a loader and also the double handling of materials. The unit can also be containerized for transport, with minimal setup time, substantially reducing transport costs
Key Features
Hydraulic folding head and tail section for transport minimizing setup time
Hydraulically adjustable discharge height up to 12 meters
Heavy duty impact bed
Hydraulically adjustable feed in height to compliment crushing and screening plants
Choice of CAT and Deutz 75kW engines giving a rating of up to 800 TPH
Fuel efficient hydraulics system
User friendly hydraulic controls
4 Meter tracks for superior manoeuvrability and stability
Feed boot hardox liners
Specifications
- Engine - 130kW (174HP)
- Transport Length - 21.19m (69’ 6”)
- Transport Width - 3.30m (10’ 10”)
- Transport Height - 4.12m (13’ 6”)
- Weight - 36,630kg (80,750 lbs)
- Working Height - 5.22m (17’ 1.5”)
- Working Length - 31.33m (103’ 9”)
- Hopper Capacity - 6.9m³ (9yd³)
- Radial Conveyor Stockpile Height - 5.09m (16’ 8”)
