EF-80

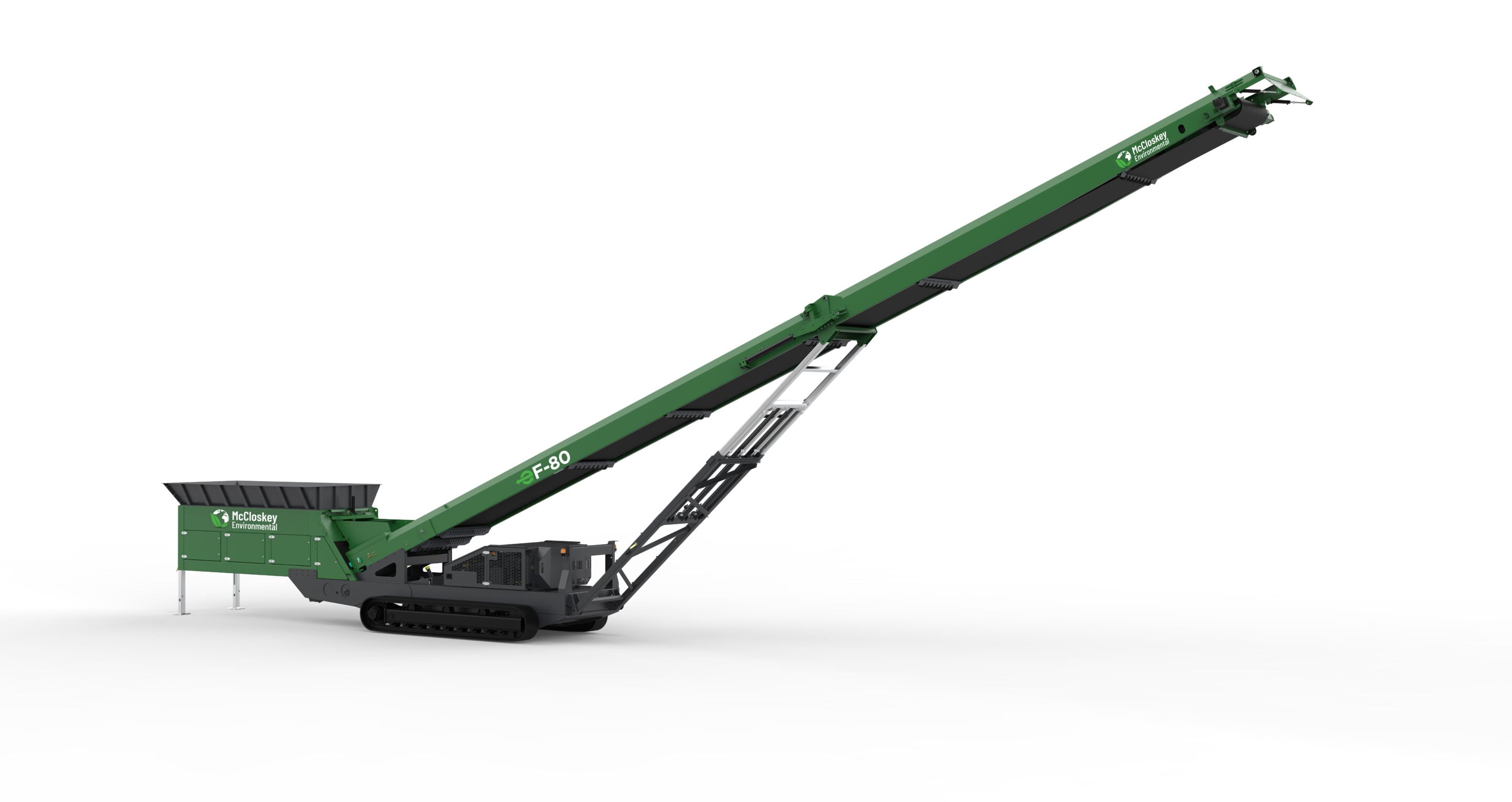

EF-80 High Capacity Stockpiling
The EF-80 features a large feeder hopper that transfers material onto an 80ft conveyor. Designed to allow operators to stockpile/transfer material it eliminates double handling of materials.
The unit can also be compacted for transport on one low loader for easy site to site transport.
Key Features
Dual hydraulic main drive system
Hydraulic folding heading section for transport minimizing setup time
Hydraulically adjustable discharge height up to 10m
CAT 3.6 100KW (136HP) LRC/Fixed speed giving a rating of up to 800 TPH
Fuel efficient hydraulics system
User friendly hydraulic controls
Hopper extensions increasing capacity
4m tracks for superior manoeuvrability and stability
Specifications
- Engine – Power Unit – CAT 3.6 100KW (136HP) Stage V / Tier 4 Final
- Transport Height – 3.4M (11’ 1”)
- Transport Length – 19.4M (63’ 6”)
- Transport Width – 3.2M (10’ 6”)
- Weight – 24500KG (54,013 LBS)
- Stockpile Height – 9.6M (31’ – 5”)
- Stockpile Capacity – 25.4M (83’ – 6”)
- Production – 800 TPH (880 USTPH)
