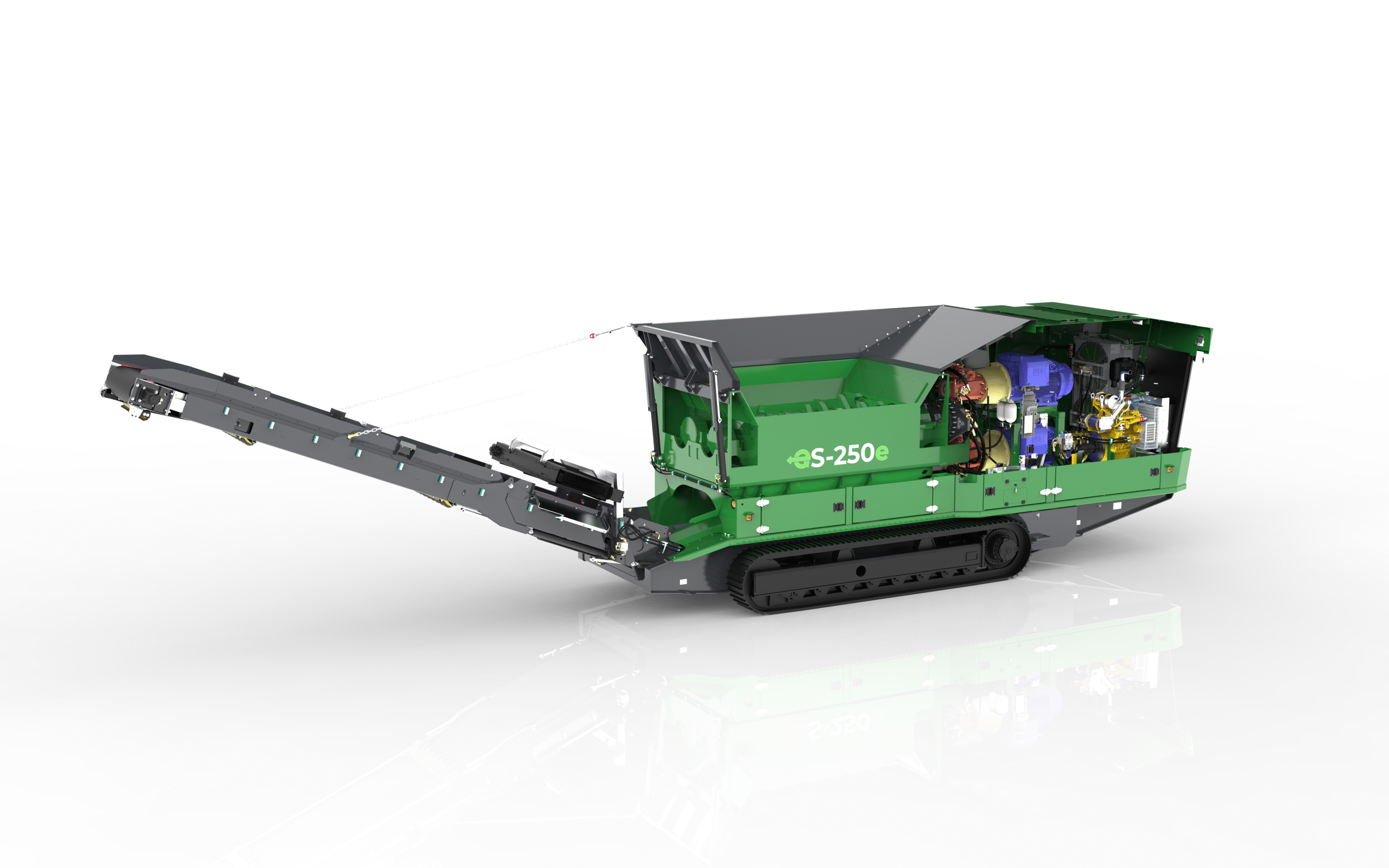

ES-250E
ES-250e
The ES-250E is a tracked primary shredder capable of effectively and reliably shredding virtually any type of material. The ES-250E is designed to meet the needs of plants in which the incoming materials vary greatly in terms of size, composition, and difficulty to shred.
The interaction between the rotating knives on the dual shafts running asynchronously in both directions ensures the input material is constantly moving to prevent bridging and maximising shredding efficiency.
Key Features
Aggressive 8 Knife heavy duty cutting table
Intelligent electrical control unit
Variable speed main conveyor
4m tracks for superior manoeuvrability and stability
x2 200kw Electric Motors
User friendly hydraulic controls
Double hydrostatic drive transmission
Auxiliary engine for tracking and set up functions
- Transport Length – 9.54m (31’ 4”)
- Transport Width – 3.01m (9’ 11”)
- Transport Height – 3.50m (11’ 6”)
- Weight – 35,000kg (77,160 lbs)
- Working Height – 3.5m (11’ 6”)
- Working Length – 15.1m (49’ 7”)
- Maximum Production Rate – 100TPH (110USTPH) (Material Dependent)
- Average Fuel Consumption – 60 L/Hour (15.5 US GAL)
- NUMBER OF SHAFTS – 2
- ROTATING SPEED – 16-41/27-56 RPM
- NUMBER OF KNIVES – 8/10
- NUMBER OF COUNTER KNIVES – 16/20
- CUTTING AREA – 1690MM X 2480MM (95” X 79”)
- KNIFE TYPE – SHEER TABLE
- CHAMBER WEIGHT – 14,900KG (32,850 LBS.)
